On Line Tracking Automatic Spray Paint Machine 4KW For Mahjong Machine Frame

Place of Origin : Guangdong, China

Brand Name : SQ

Model Number : SQ200x

Certification : CE

Packaging Details : wooden case

Supply Ability : 15 Set/Sets per Month

Price : Negotiable

MOQ : Negotiable

Payment Terms : D/P, D/A, L/C, T/T

Delivery Time : 15-20

Type : Coating Spray Gun

Voltage : Customers Local Voltage

Power : 4KW

Weight : 1000KG

Warranty : 12 Months

After-sales Service Provided : Engineers available to service machinery overseas

Usage : spraying machine

Port : shenzhen

Contact Now

On Line Tracking Automatic Spray Paint Machine 4KW For Mahjong Machine Frame

On line tracking spraying painting machine for mahjong machine frame/ automatic spray paint machine

Product Application

With the process of society, munal spraying has failed to meet the needs of modern industry. So, it is necessary to use automatic spraying take place of manual spraying.

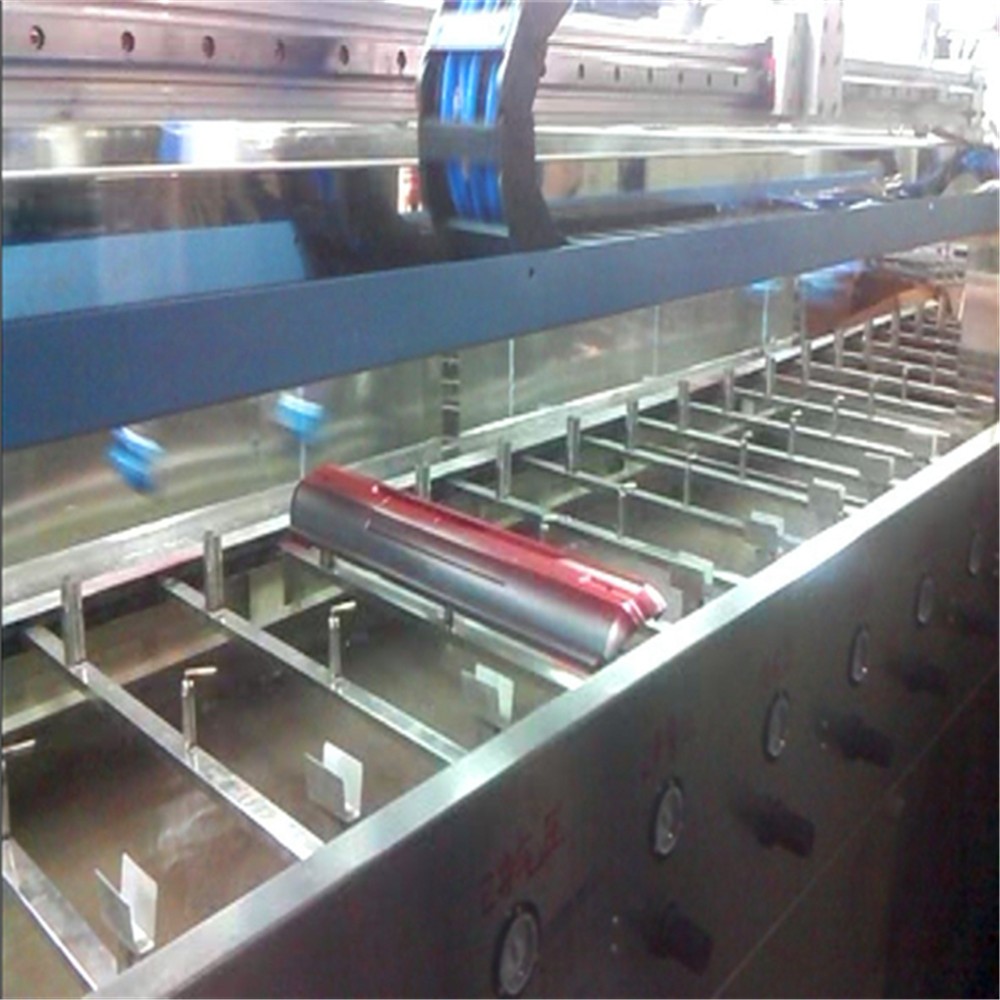

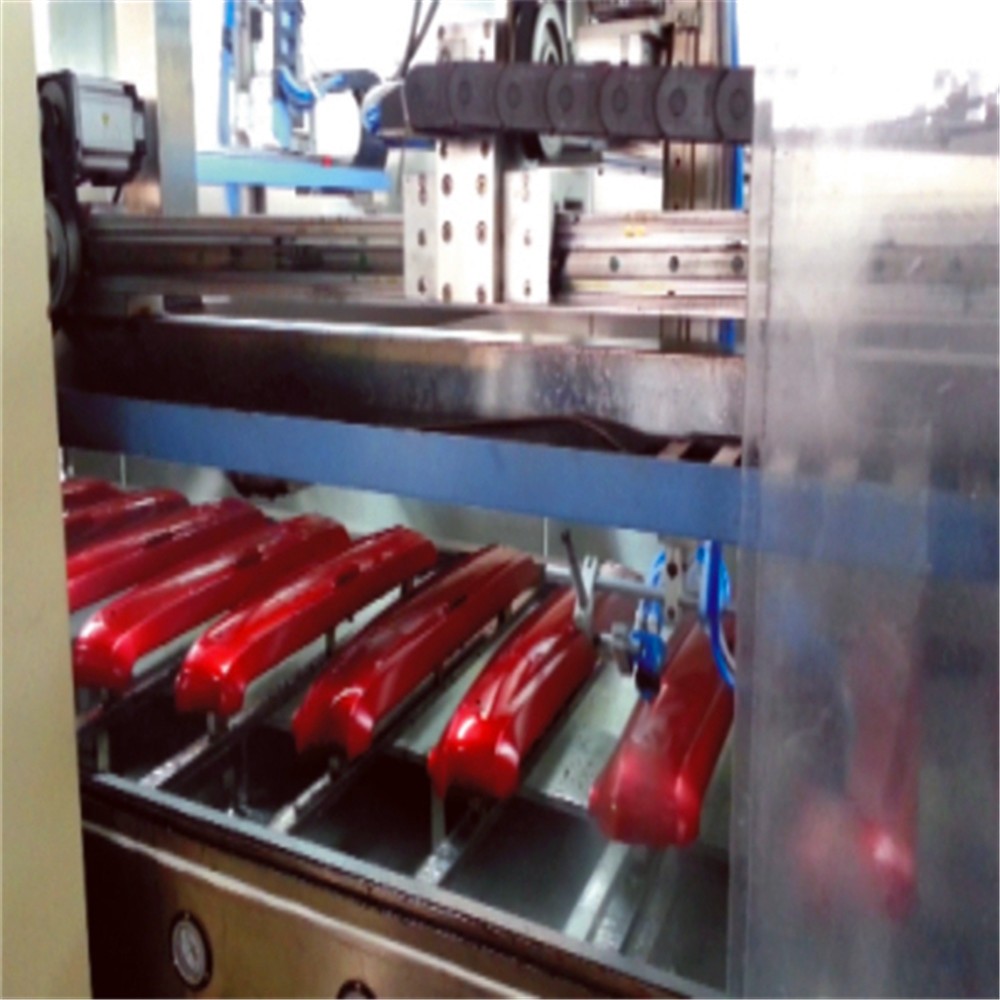

This spraying mchine is professional designed for mahjong machine frame. The design of this machine depends on the shape and size , coating process of mahjong machine frame. The machine tracking spray the mahjong machine frame which putted on the line with fixture. The whole machine contain two reciprocating spraying machine, one machine spray left, right and top sides of mahjong machine frame, the other one spray front , behind and top sides of it.

The difference between automatic spraying and manual spraying(Normally)
	Automatic spraying	Manual spraying
Spray gun	high atomization	Low atomization
Spraying quality	High	Low
Spraying speed	Fast	low
Paint needs	Less	more
Damage to the human body	Less	more
Working hours	24h	8h
managed cost	Less	more
Factory output	more	less

SPECIFICATIONS FOR SPRAYING MACHINE
Control system	1. Japanese OMRON PLC 2. Taiwan WEINTEK Color industrial touch screen 3. Schneider Electric switch and Power Supply 4. Japanese OMRON relay


Drive system	Japanese Panasonnic servo drive system


Transmission system	1. Aluminium profile module 2. Taiwan HIWIN Linear guide rail 3. Taiwan HIWIN Silent slide 4. Precision synchronous wheel 5. Italy Megadyne Synchronous belt with steel wire 6. positioning accuracy difference ±1mm


Product exchang platform	1. Precision divider 2. Taiwan CPG Gear motor 3. Japanese Mitsubishi frequency converter
Product rotation platform	1. Precision divider 2. Can be 90 degrees, 180 degrees rotation, continuous rotation 3. Automatic turning surface
Spray gun	Japanese DEVILBISS
Paint supply system	1. Amercian GRACO 308 diaphragm pump 2. Pneumatic agitator produce from Taiwan,China 3. Taiwan AIRTAC Solenoid valve, Pressure regulating valve, Pressure gauge
Power supply	AC220V50HZ, Single phase three wire

On Line Tracking Automatic Spray Paint Machine 4KW For Mahjong Machine Frame

Details

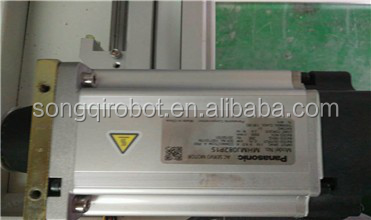

Name: servo motor

Brand: Panasonnic

Original: Japanese

positioning accuracy ± 0.5mm

On Line Tracking Automatic Spray Paint Machine 4KW For Mahjong Machine Frame

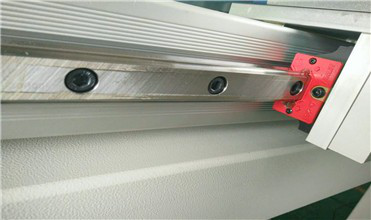

Name: Linear guide rail and Silent slide
Brand: HIWIN
Original: Taiwan China
positioning accuracy ± 0.5mm and no noise

On Line Tracking Automatic Spray Paint Machine 4KW For Mahjong Machine Frame

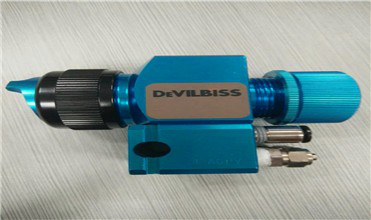

Name: spray gun
Brand: DEVILSS
Original: Japanese
T-APGV spray gun

On Line Tracking Automatic Spray Paint Machine 4KW For Mahjong Machine Frame

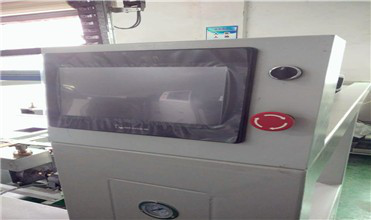

Name: touch screen
Brand: WEINTEK
Original: Taiwan China
10 inch Color industrial touch screen
